Walls up to 500 mm
100 mm
0.68 kg
2495 mm2
Features:
Reduces condensation and mould whilst filtering
Get precise control over your home's ventilation with adjustable iris shutter
Easy to install and commission

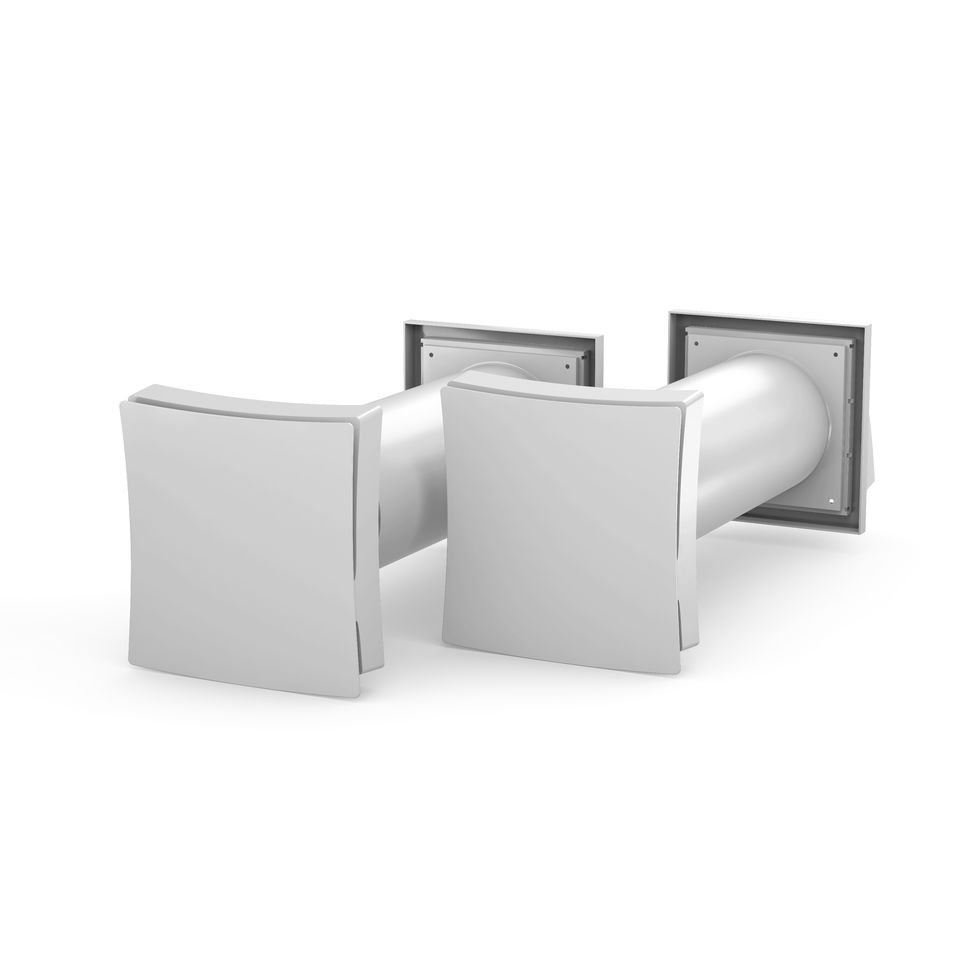

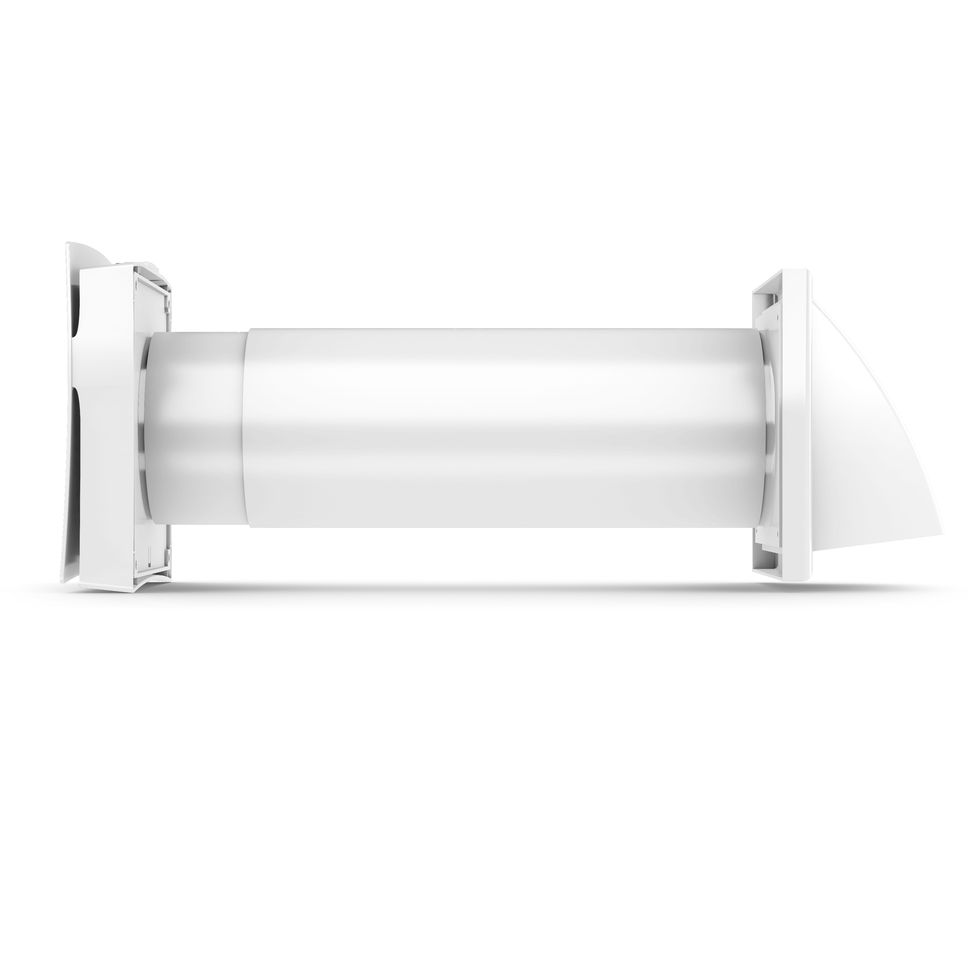

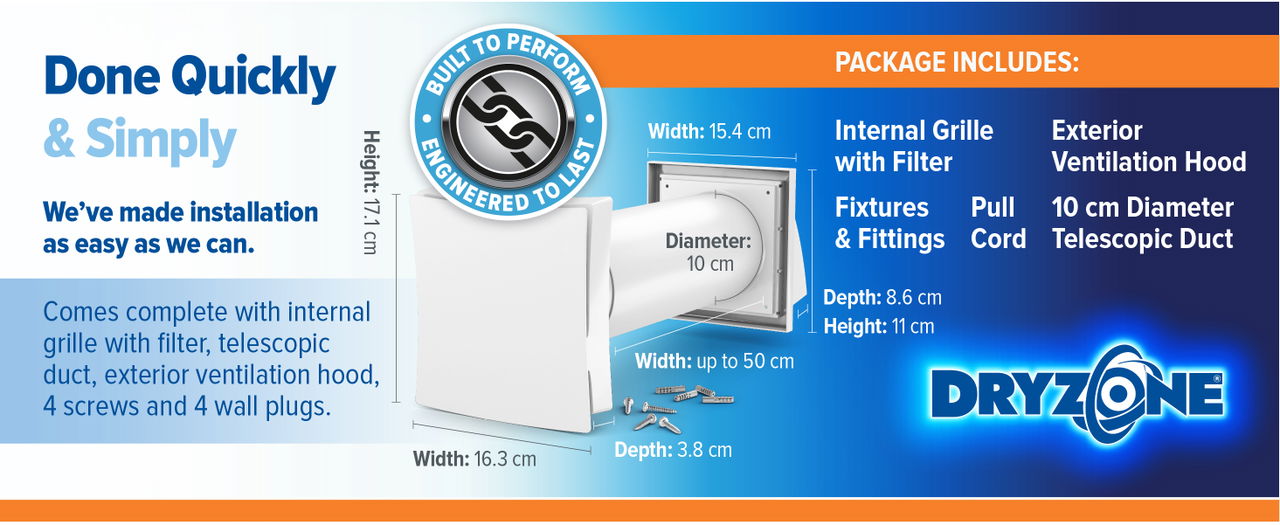

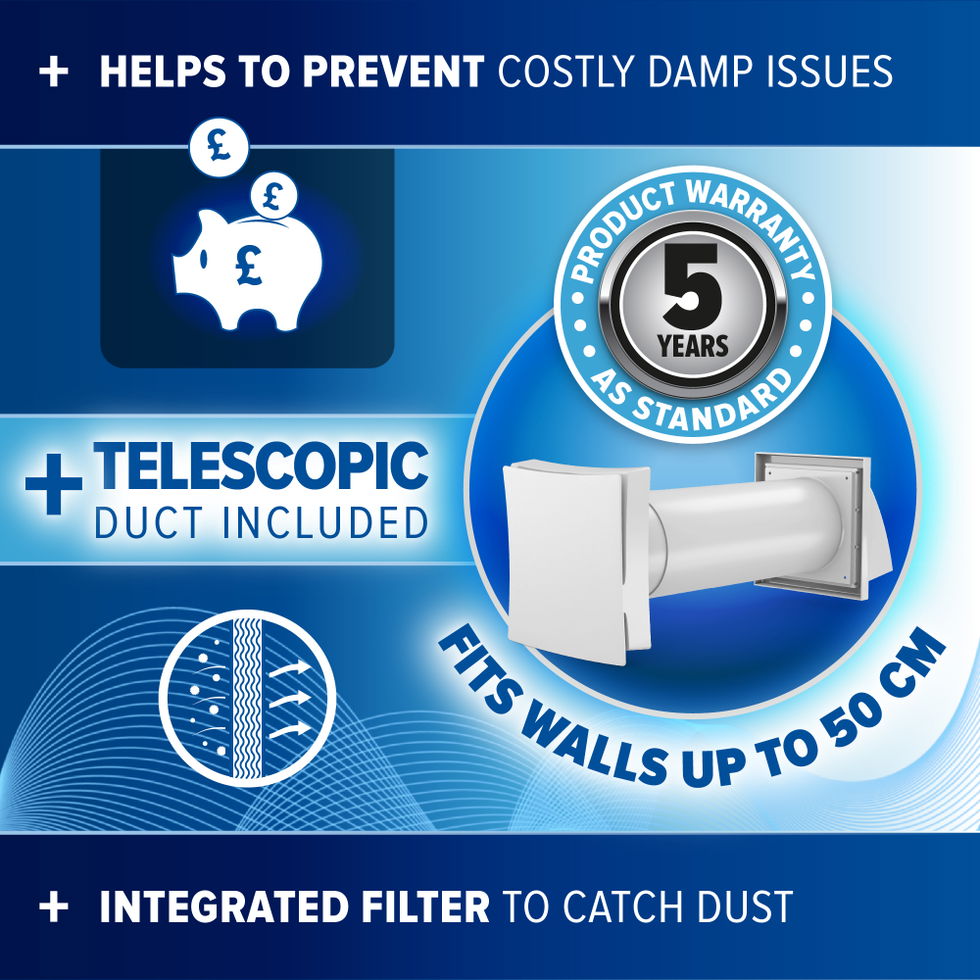

Telescopic duct fits walls up to 500 mm

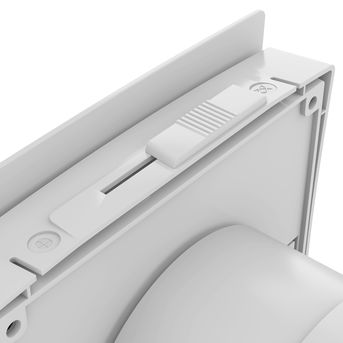

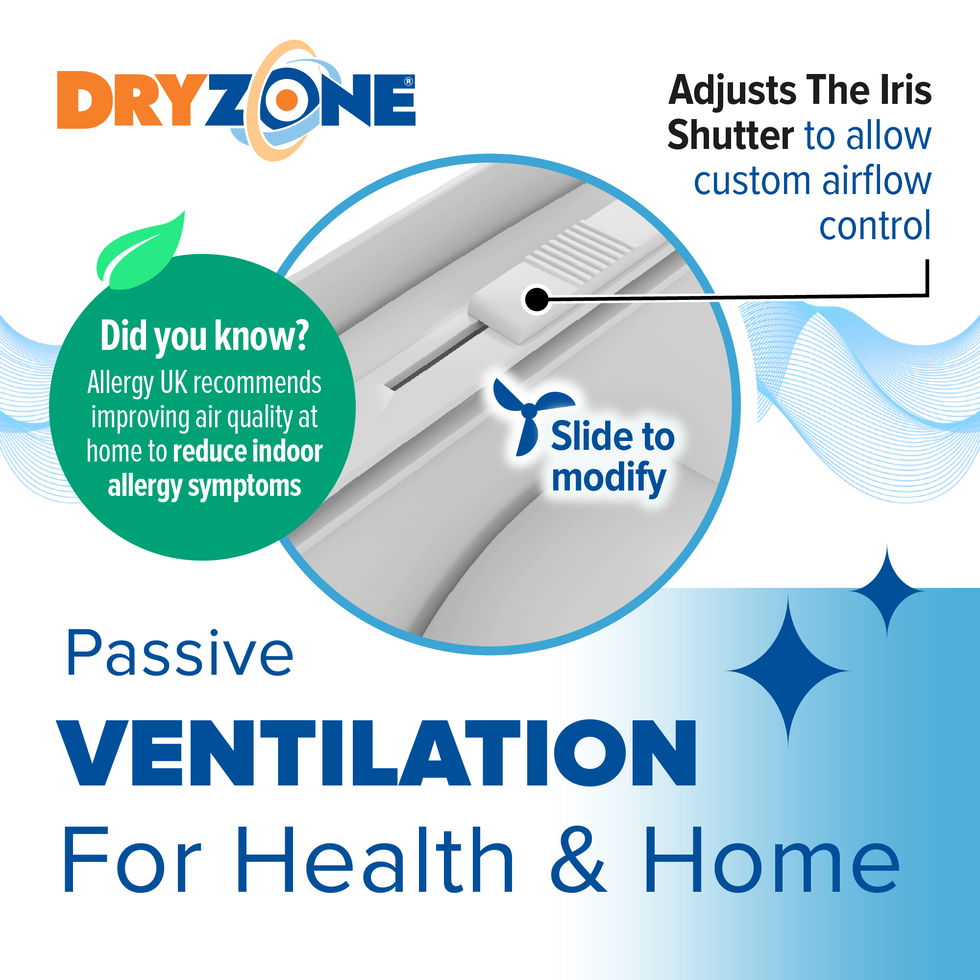

Change airflow settings with controllable slider
Typically no need to redecorate or make good after installation
100% silent - no mechanical parts means no noise

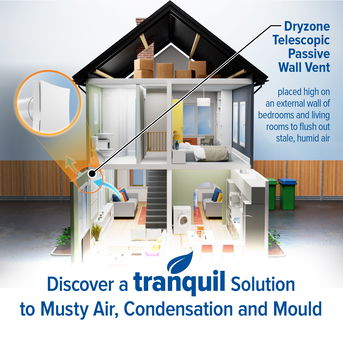

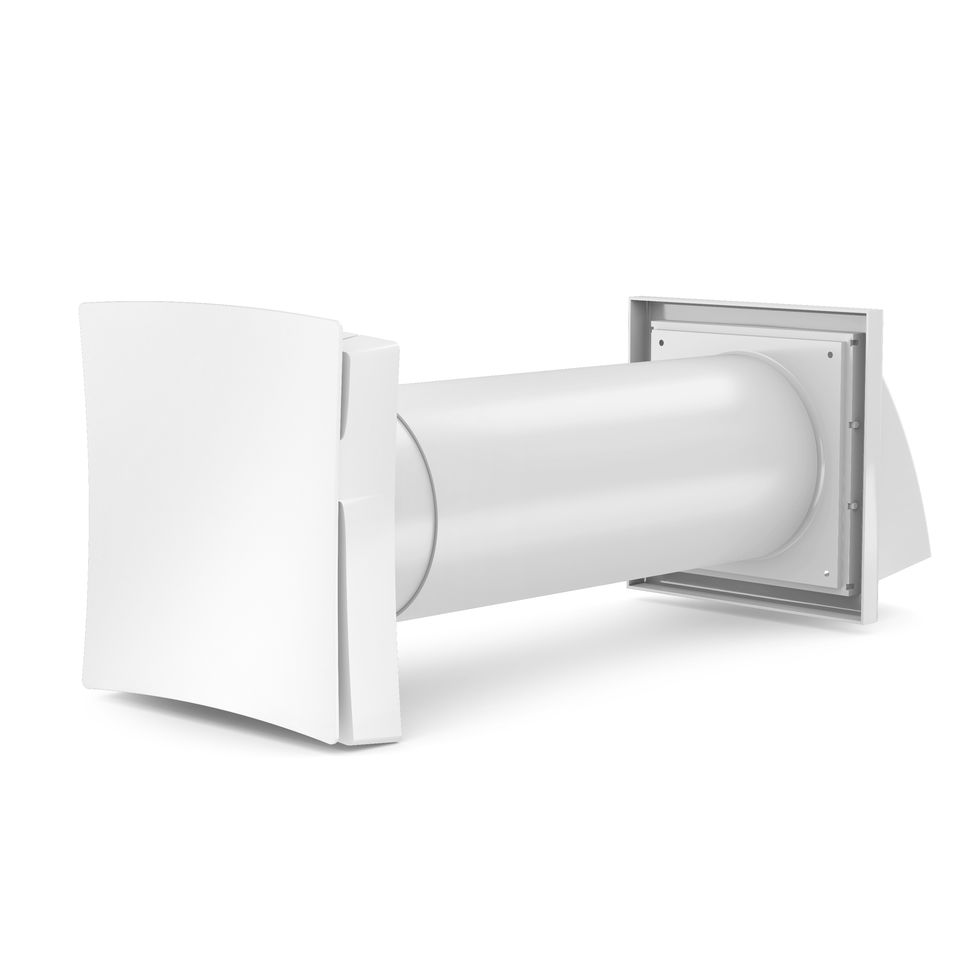

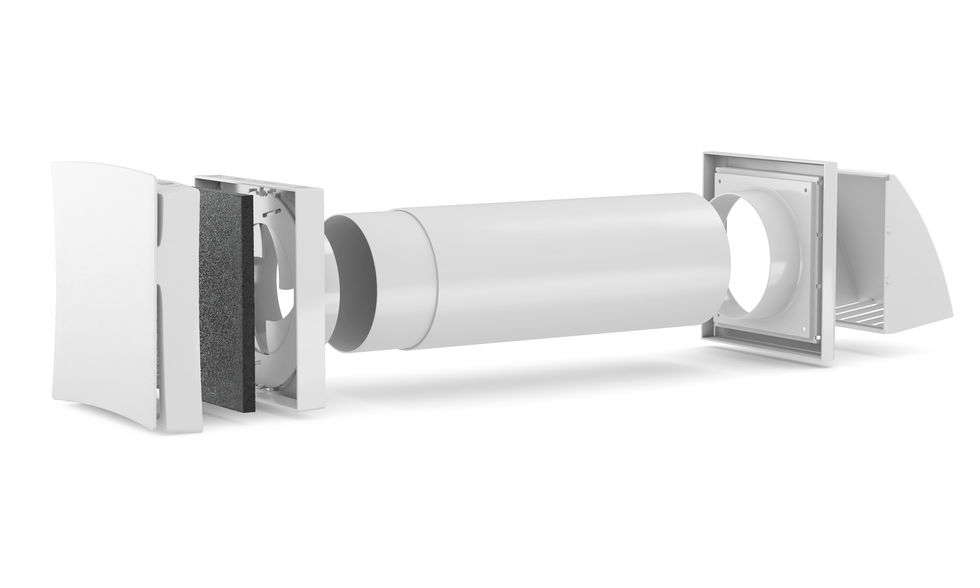

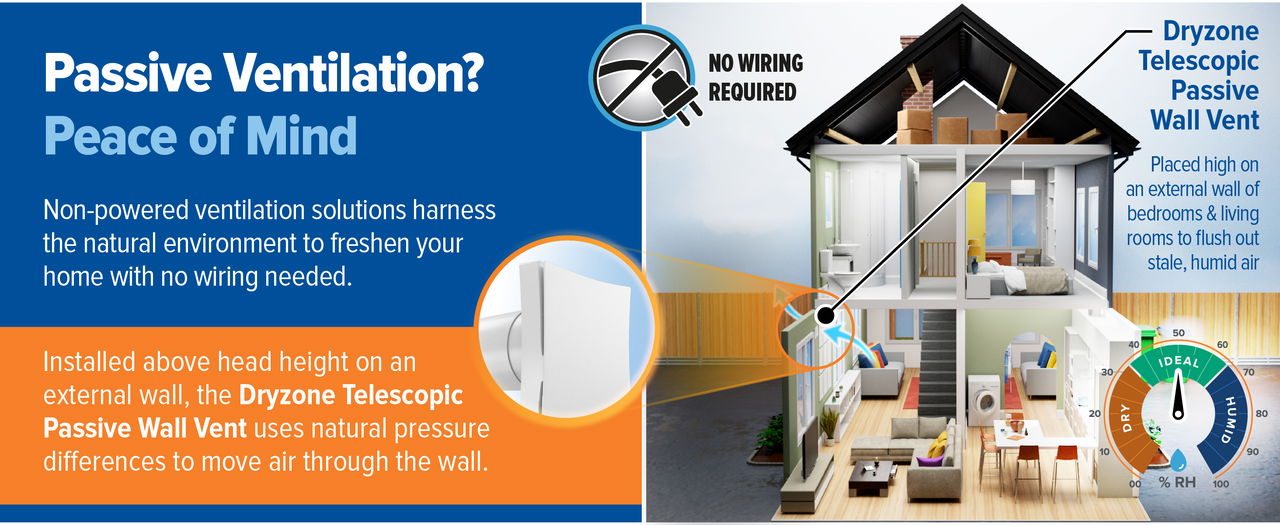

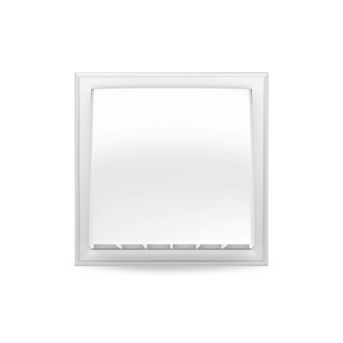

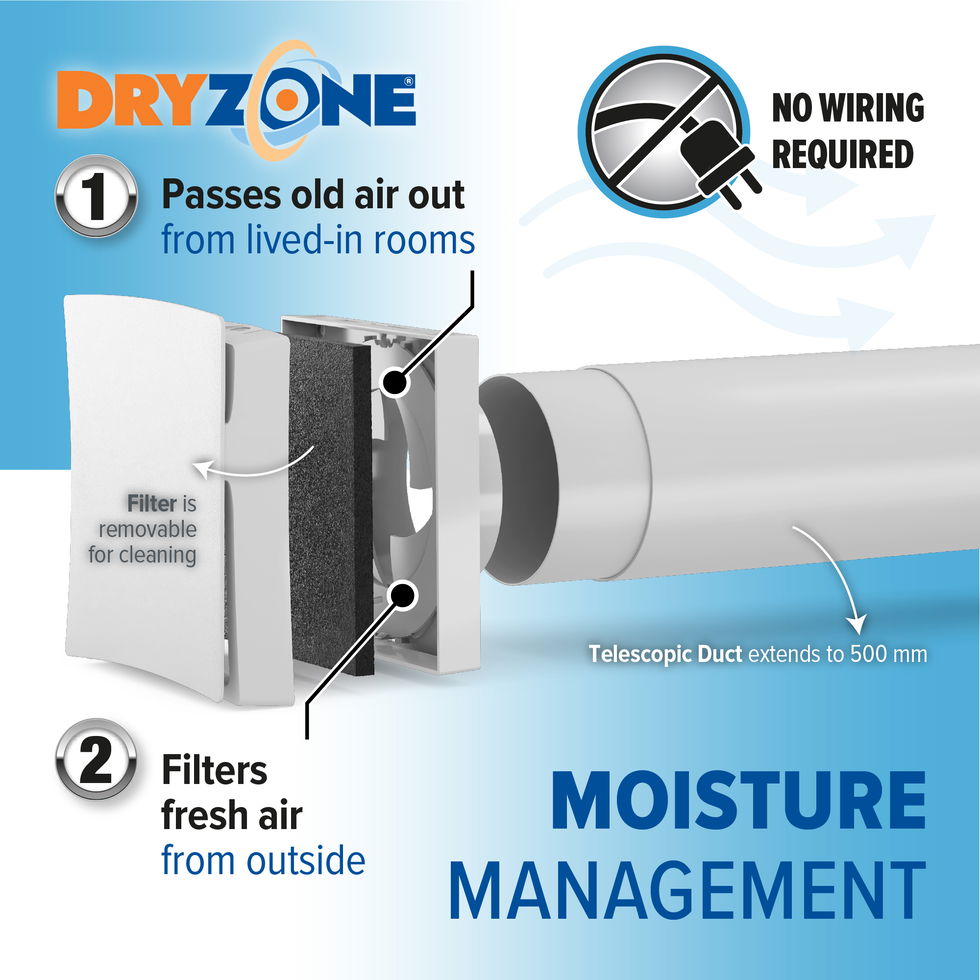

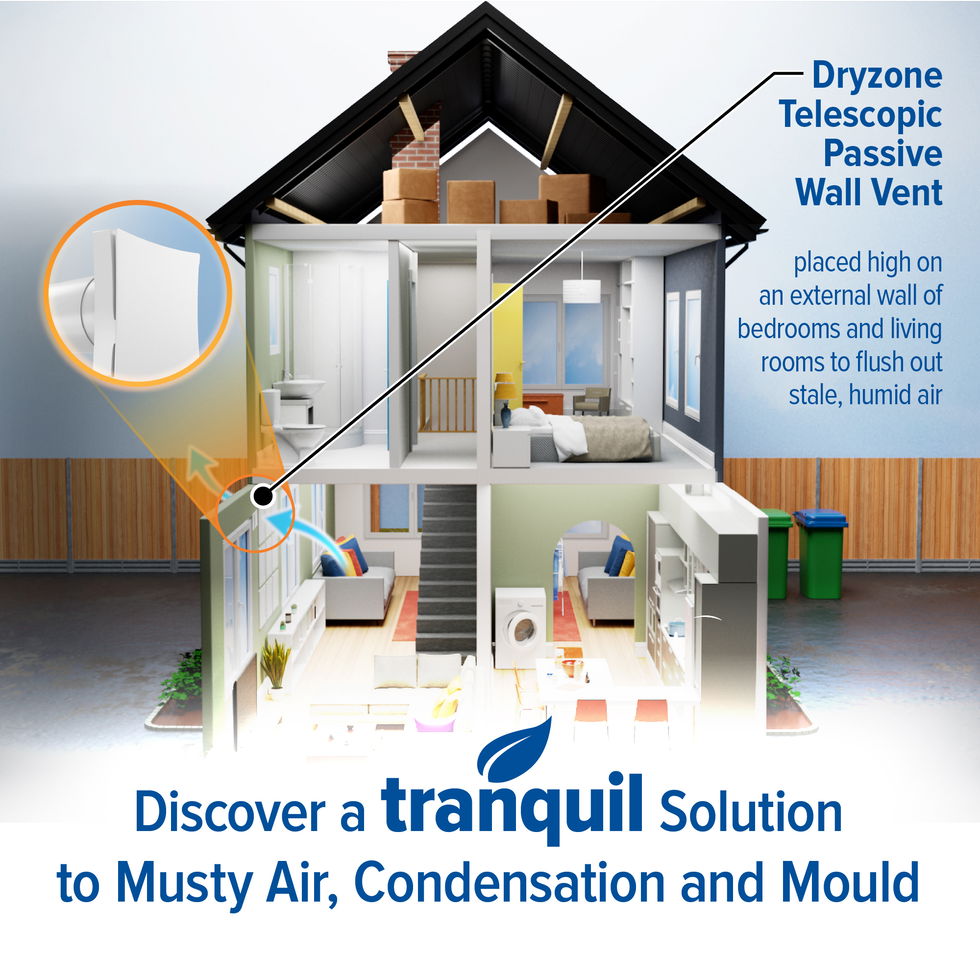

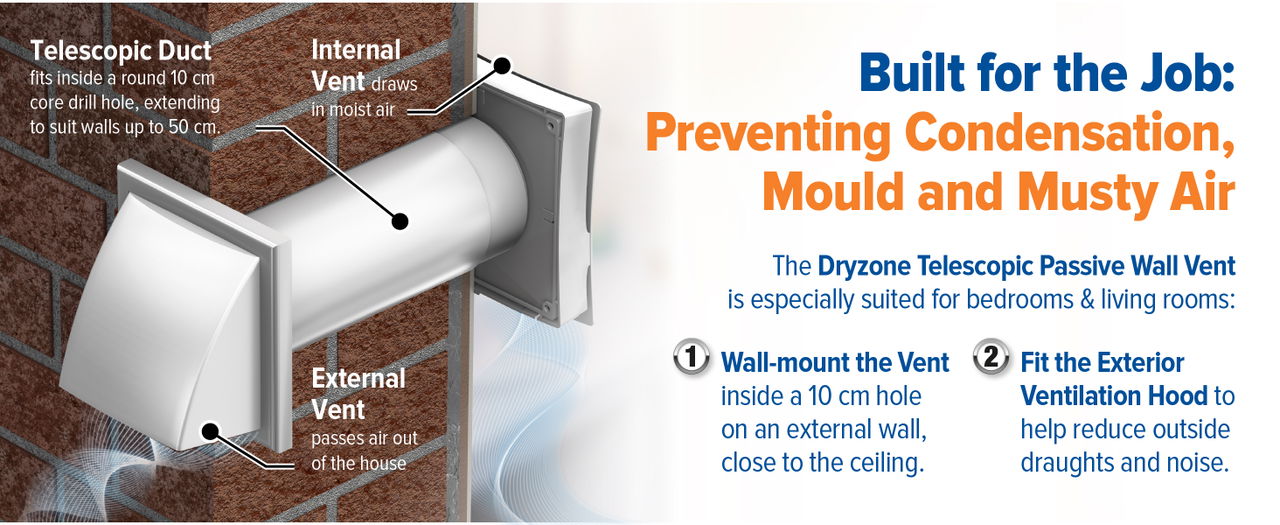

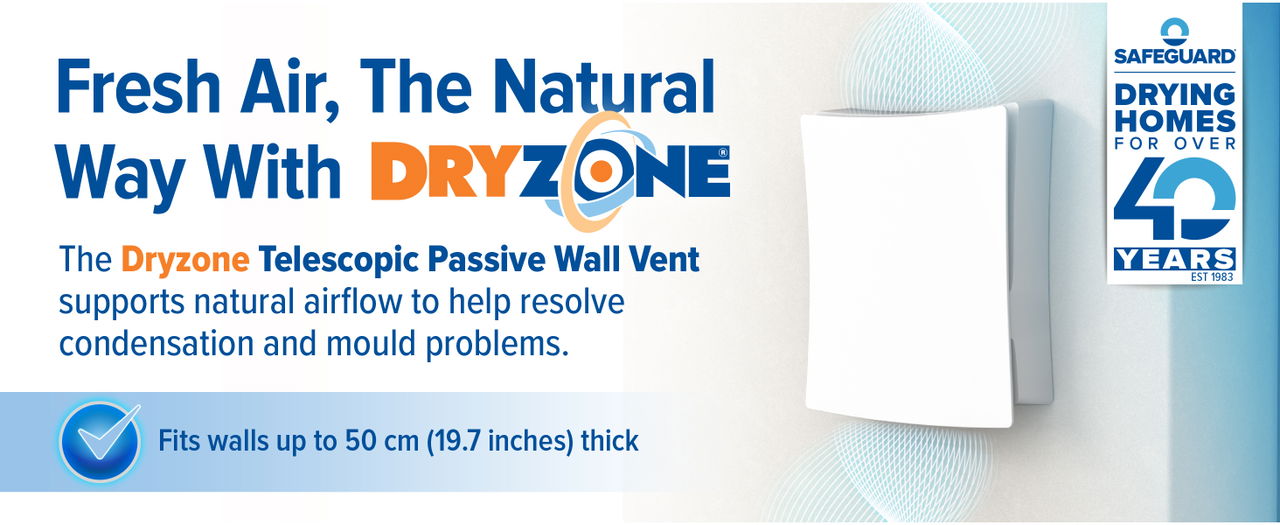

Dryzone Telescopic Passive Wall Vent improves air quality in habitable rooms and helps manage condensation and mould. Fit it on an external wall near the ceiling above head height. No wiring required. The telescopic duct fits walls up to 500 mm, so one model covers most properties. It's easy to set your chosen airflow with the internal adjustable iris shutter and slider. With no mechanical parts, operation is silent and maintenance is simple; just periodically clean the vent and filter.
Note: The equivalent area (as defined in the Building Regulations 2010: Approved Document F: 2021: Volume 1 - Dwellings) is a measure of the aerodynamic performance of a ventilator.
It is the area of a sharp-edged circular orifice through which air would pass at the same volume flow rate, under an identical applied pressure difference, as through the opening under consideration.
The equivalent area of a background ventilator is determined at 1Pa pressure difference in accordance with the Table 1.7 in Minimum equivalent area of background ventilators for natural ventilation in Approved Document F: 2021: Volume 1 - Dwellings.
The free area of a ventilator is defined as the geometric open area. For example, the Dryzone Telescopic Passive Wall Vent has a 100 mm free area.
