Dark blue or white thick liquid
Water-based
1 litre tins and 5 litre plastic buckets
Styrene butadiene latex

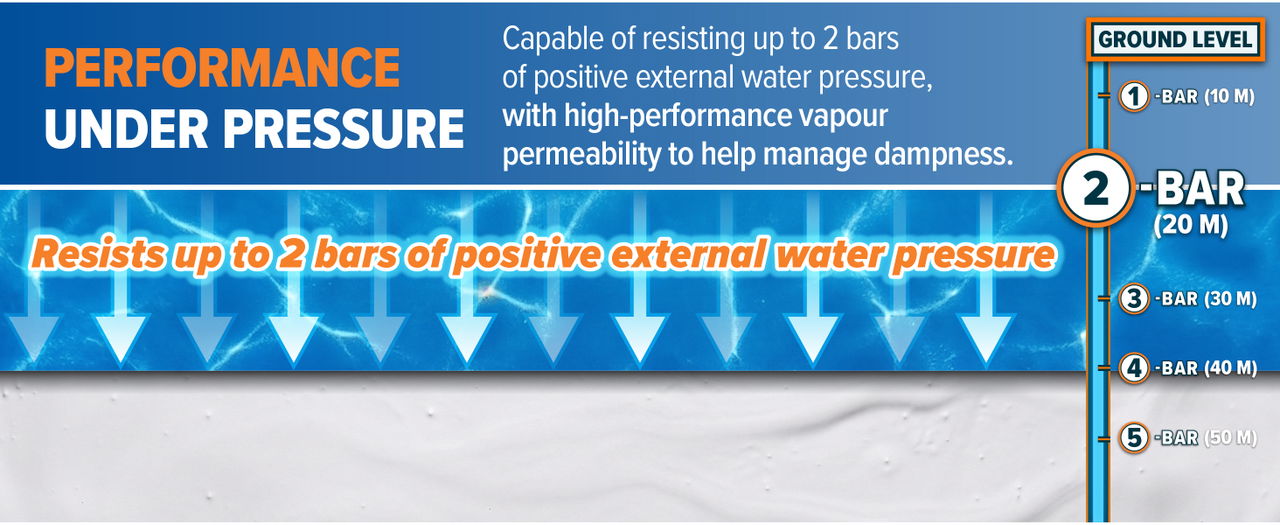

20 metre head (positive pressure)
Drybase Liquid-Applied DPM
Bitumen-free & water-based
Easy to apply (ready for use)
Effective gas barrier
Quick-drying & strong bond

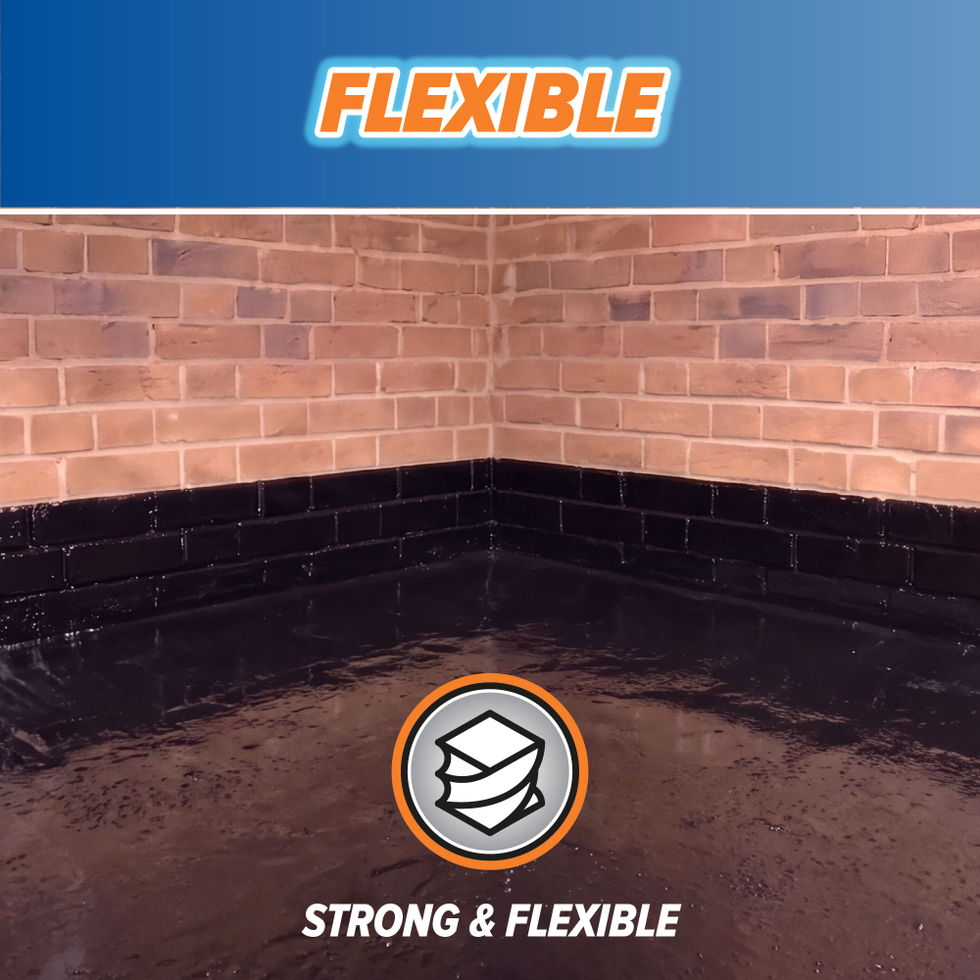

Please note that Drybase Liquid DPM is only suitable for low-level wall applications, where it can be lapped from the floor up to the damp-proof course (DPC). This height is typically less than 100 mm above floor level. It is not suitable for application to walls above this height.

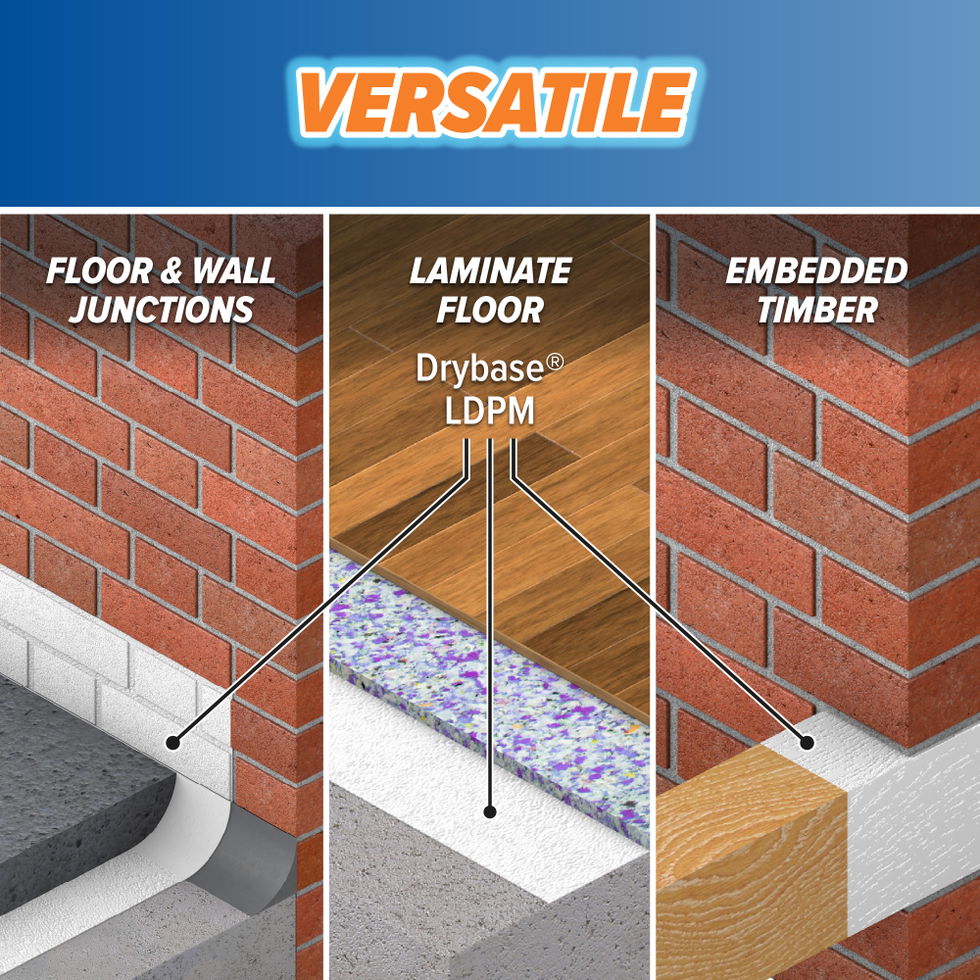

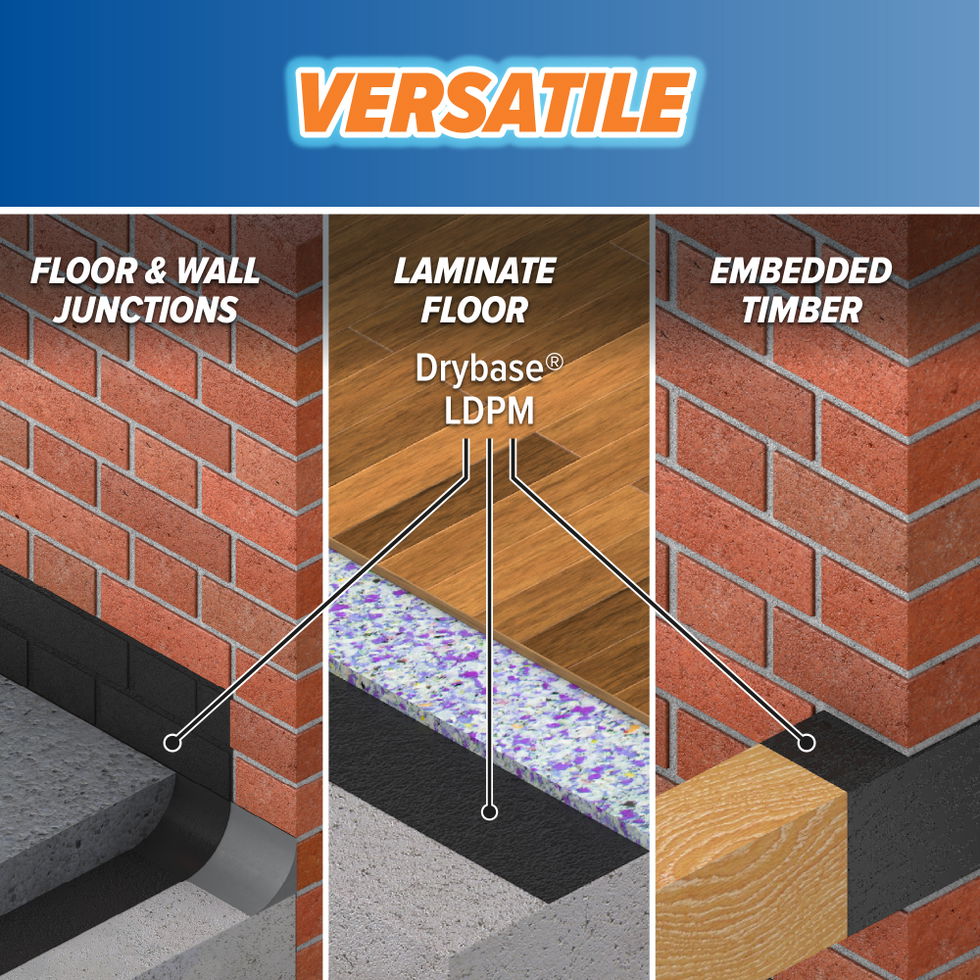

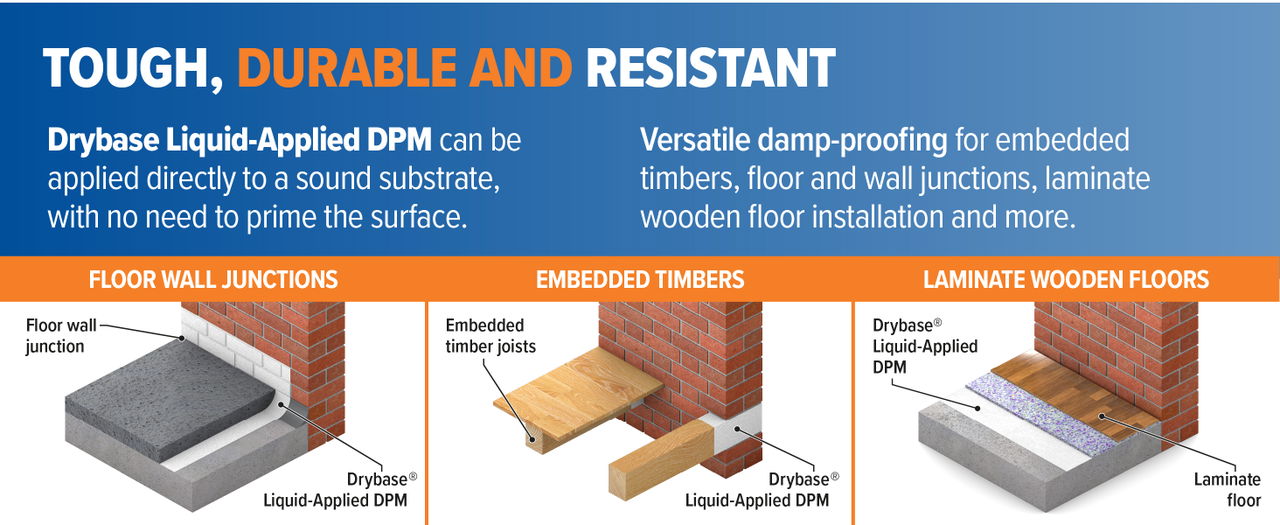

Drybase Liquid-Applied DPM is a paintable damp-proof membrane that can be used in many situations including, but not limited to:

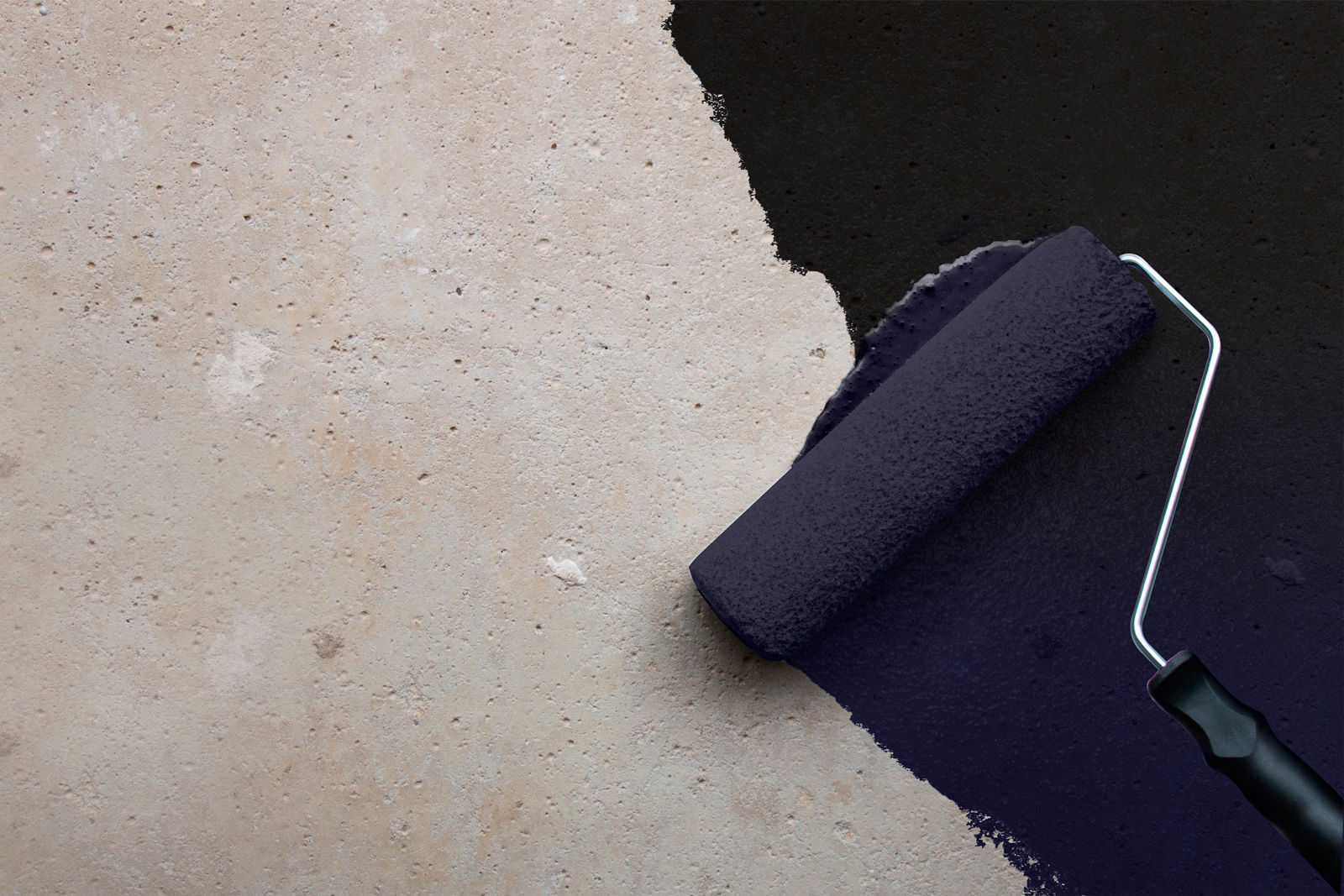

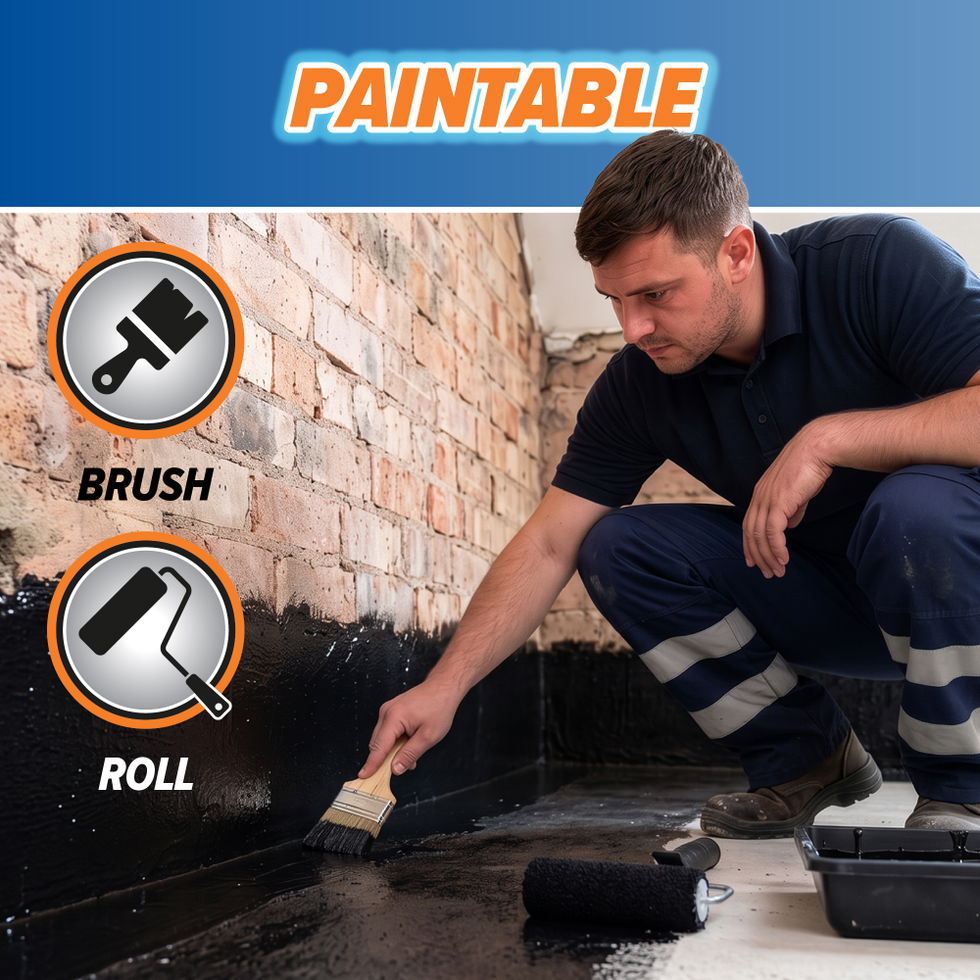

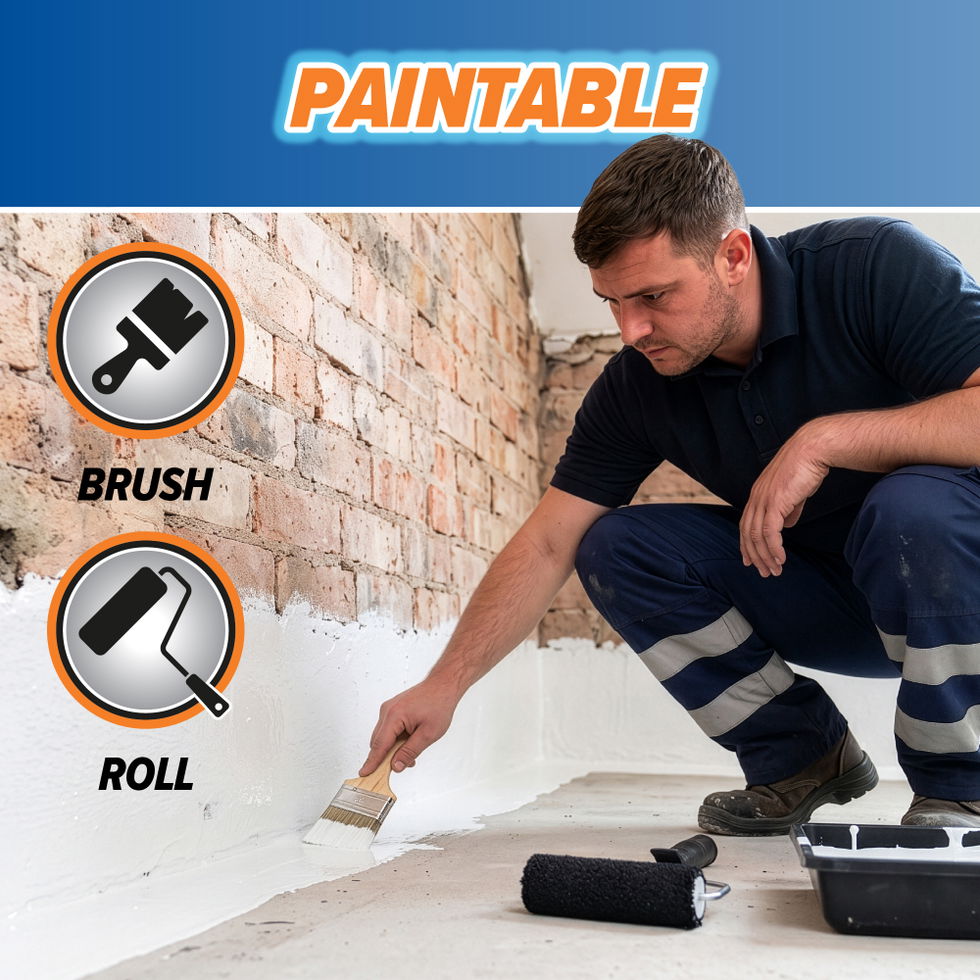

Drybase Liquid-Applied DPM is a ready-to-use product and does not require any extra components or ingredients to be mixed in. Just apply to any appropriate well-cleaned and laitance-free surface using a paint brush or roller.

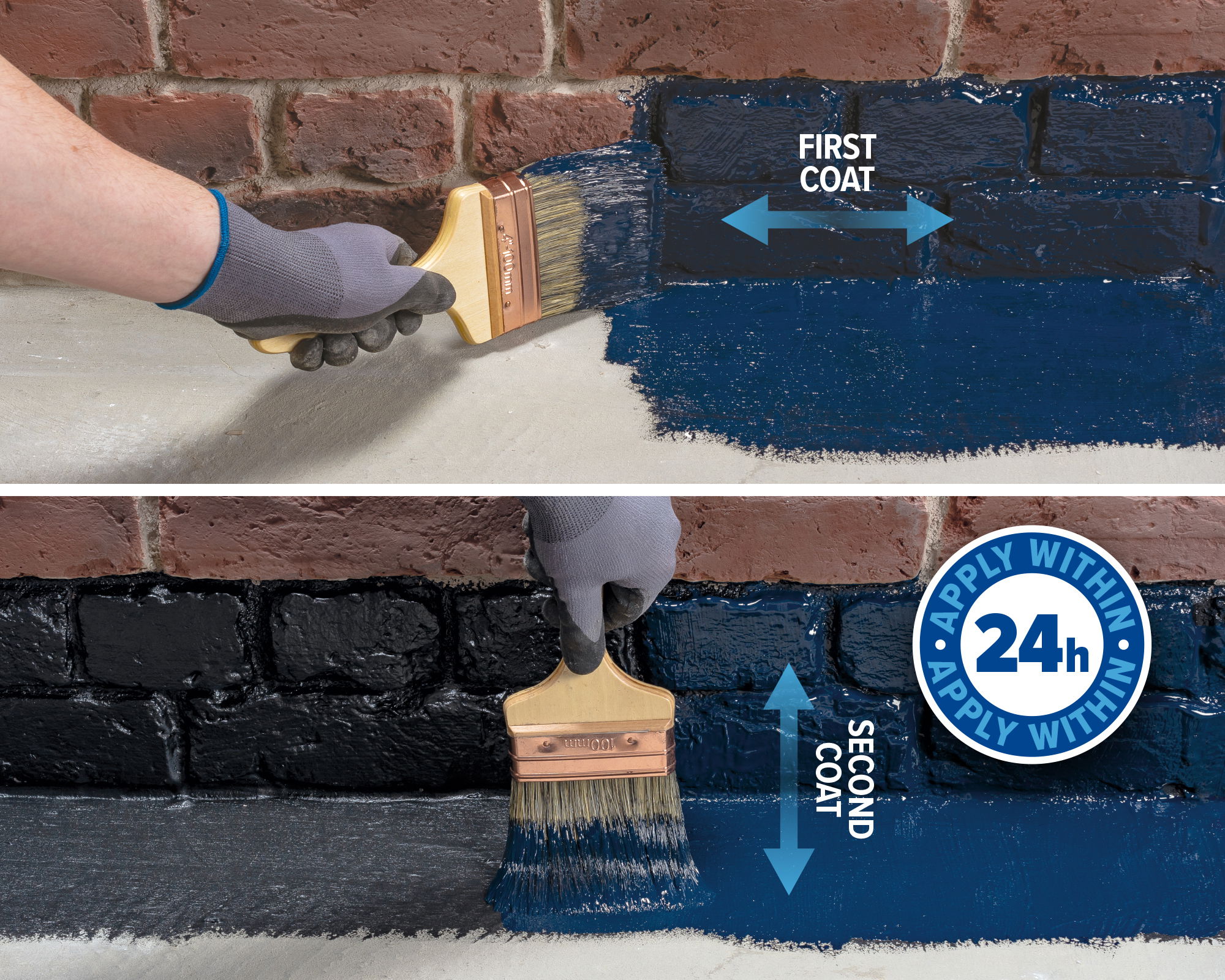

Once applied, a coat of Drybase Liquid-Applied DPM will typically be touch-dry within one hour. This means that multiple coats can be applied in a single day to reach the specified loading of material. Depending on circumstances, two coats applied at right angles to each other is all that is required.
Drybase Liquid-Applied DPM is available in either black or white to suit your requirements. If ordered in black colour, it is dark blue when first applied but turns black when dry so you can see where it is ready for another coat or has become touch-dry.
As it dries, Drybase Liquid Applied DPM is tacky to the touch. If a screed is going to be applied or tiles laid then a final coat can be applied as a primer.
Good morning
Thank you for your question.
We would recommend using our Drybase Universal Mortar to create a fillet. That will be a suitable base to apply the Drybase Liquid-Applied Damp-Proofing Membrane onto.
If you are looking for more in depth advice on how to apply our products, please give us a call on 01403 210204 and a member of our Team will be happy to help.
Kind regards
Sofia
Safeguard Europe Ltd
Do you need to dampen the surface or can you just apply the paint on to a dry, dust free concrete floor?
Good morning,
Thank you for your enquiry.
You do not need to dampen the surface before application. We just advise that the surface is sound, clean and smooth without dust, dirt, grease, paint or old coatings.
I hope this helps.
Kind regards,
Mollie
Safeguard Europe Ltd
I have used this on my garage floor, what paint is suitable to go on top?
Hi John,
Thank you for reaching out with your enquiry.
Liquid DPM needs to be over-coated with a material such as a self levelling compound, screed or underlay.
We are not aware of any paints which would be suitable to be applied on top of the Liquid DPM.
If you have any further enquiries then please do not hesitate to get in touch and let me know.
Kind regards,
Mollie
Safeguard Europe Ltd
I am looking to install a solid wood floor on the concrete subfloor. I intend to use the LDPM and then a polymer based flexible adhesive to glue the wood down. Can I use the glue on top of the LDMP?
Hi Lauma,
Thank you for the enquiry.
We advise that the Liquid DPM is over-coated with a layer of self levelling compound or screed prior to any other floor finishes.
If you have any further enquiries please feel free to contact us directly.
Kind regards,
Mollie
Safeguard Europe Ltd
Does this product require a primer on top before applying self levelling compound
Hi Keith,
Thank you for the enquiry.
When applying a screed or self levelling compound over the Liquid Applied DPM, the second coat can be used as a primer if the screed is applied while the second coat is still tacky.
I hope this helps, if you have any further queries please do not hesitate to get in touch directly.
Kind regards,
Mollie
Safeguard Europe Ltd
Strange application in a hot and humid small animal / reptile enclosure indoors.
Will this be suitable over cement board (Knauff Aquapanel)
Can I paint this over with a water based masonry paint ?
Also want to stick an area with a rubber (roofing type EPDM). Will this be compatible
Strange Q's but hope you can help
Hi Nick,
Thank you for the enquiry.
We would not recommend Drybase Liquid DPM for this application.
Drybase Liquid DPM is designed to be applied to a concrete floor and then over coated with a screed, self-levelling compound or underlay.
Due to the nature of the product, no paints are likely to bond to the material well and will most likely peel/crack off.
I hope this answers your questions, if you have any further questions please do not hesitate to get in touch and let us know.
Kind regards,
Mollie
Safeguard Europe Ltd
What do clean your rollers with? Using next day again!!!
Hi Thomas,
Thank you for your message.
We advise to just use warm soapy water immediately after use.
Kind regards,
Mollie
Safeguard Europe Ltd
Can this be used for tanking a wet room and be (ceramic) tiled over ?
Good morning Jan,
Thank you for your enquiry.
Drybase Liquid Applied DPM would not be suitable for this application. It is recommended for use on concrete flooring and also floor to wall joins up to the height of the damp proof course.
I hope this helps, if you have any further queries please do not hesitate to get in touch with us directly.
Kind regards,
Mollie
Safeguard Europe Ltd
Would this be suitable to use on top of plywood subfloor to make waterproof in a bathroom before vinyl tiles are installed?
Good Morning Kevin
Thank you for your question.
Drybase Liquid Applied DPM should be applied to the bare concrete slab itself and not onto any other surfaces. It then should be protected by usually a screed or underlay, you should not apply vinyl tiles directly over the top of this.
If you have any further questions please contact us on 01403 210204 or email us at [email protected].
Kind regards
Jack
Safeguard Europe Ltd
can you plaster over the liquid dpm and is so what plaster do you use - normal or renovating
Hi Paul,
Thanks for your question. We don't recommend you paint a full interior wall with Drybase Liquid DPM, as it can slump and is not compatible with plaster finishes.
Please get in touch via 01403 210204 or email us at [email protected] for more in-depth advice about your project.
Hi, my garage floor is 16ft x 10ft how many 5ltr tins would I need? Thanks
Hi Mark,
Thanks for your question. Around 2-3 as a general purpose DPM, depending on the substrate. If you require a Vapour Barrier, it will be more. Keep in mind that Drybase Liquid-Applied DPM does not provide a trafficable surface.
Please get in touch at 01403 210204 or email us at [email protected]. Our technical team will be able to advise you further about this specific project.
Bonjour, puis je utiliser ce produit pour mettre sur le carrelage de ma douche ? c'est juste sur une paroi. merci
Bonjour Cyril,
Merci pour votre question.
Nous ne recommandons pas la membrane d'étanchéité liquide Drybase pour cet usage.
Can Drybase Liquid DPM be used as a Radon gas barrier?
Drybase Liquid DPM can be applied to a substrate to provide Radon protection in accordance with BRE211 which states:
In areas with an increased radon potential, sufficient protection will be provided by a well-installed damp-proof membrane (DPM) modified and extended to form a radon barrier across the footprint of the building. This gas-tight barrier is known as basic radon protection.
Drybase Liquid DPM has been tested by Saarland University and was found to be Radon tight at 2 mm thickness.
To apply Drybase Liquid DPM for Radon protection, apply a minimum of 2 3 coats, allowing the previous coat to dry for an hour or so before applying the next coat. To achieve a 2 mm thickness the coverage of Drybase may be less than the stated 4.5 m² per 5 litres.
How do I apply a screed onto Drybase Liquid DPM?
The second coat of Drybase Liquid-Applied DPM can be used as a primer for cementitious levelling screed as long as it is applied while the second coat of Drybase Liquid-Applied DPM is still tacky.
Alternatively, create a mechanical key on the Drybase Liquid-Applied DPM layer by sprinkling fine washed sharp sand or kiln dried graded quartz sand while it is still tacky.
If both the first and second coats of Drybase Liquid-Applied DPM have already cured, a further coat can be applied to act as a primer for levelling materials such as cementitious levelling screeds. Any subsequent layers should be applied while the Drybase Liquid DPM is still tacky.
Can I lay tiling onto Drybase Liquid DPM?
Yes, however you will need to use be a polymer-modified tile adhesive.
Please ask the tile adhesive manufacturer for the thickness required and to ensure compatibility between the tile adhesive and Drybase Liquid-Applied DPM.
What thickness should a cementitious levelling screed be laid onto Drybase Liquid DPM?
Cementitious levelling screed should be laid at a thickness of between 50 and 70 mm or greater. Always take into account BS8204, the manufacturers guidelines and the required load bearing capacity.
If more than occasional foot traffic or commercial use is expected, we recommend that the cementitious levelling screed is laid as a thicker layer.
The surface of the cementitious levelling screed should be finished according to the type of wearing surface or flooring that is to be laid.
If the use of a thin sheet or tiled floor is required, then the use of a self levelling smoothing compound over the cementitious levelling screed should be specified.
Why can't I paint my garage / house wall with Drybase Liquid DPM?
Drybase Liquid DPM is not UV-resistant and will lose adhesion and disintegrate within approximately 12 months if applied externally due to UV light. It cannot be applied to vertical surfaces.
Why can't I paint an interior wall with Drybase Liquid DPM?
Drybase Liquid-Applied DPM does not have a strong bond to the substrate and will therefore not strongly adhere to vertical surfaces. It may also slump if applied to vertical surfaces, making it difficult to add any water based finishes like plaster or paint on to.
